La Caņada, Ávila, Spain, the J87 observatory
|
|
The observatory was built around a tall, 2.5 m high pier, the basement floor is a square about 3.20m on each side and serves as a control room. On the first floor, circular, is the 12" LX200 telescope CCD equiped all enclosed by a fiberglass dome.
|
|
|
|
|

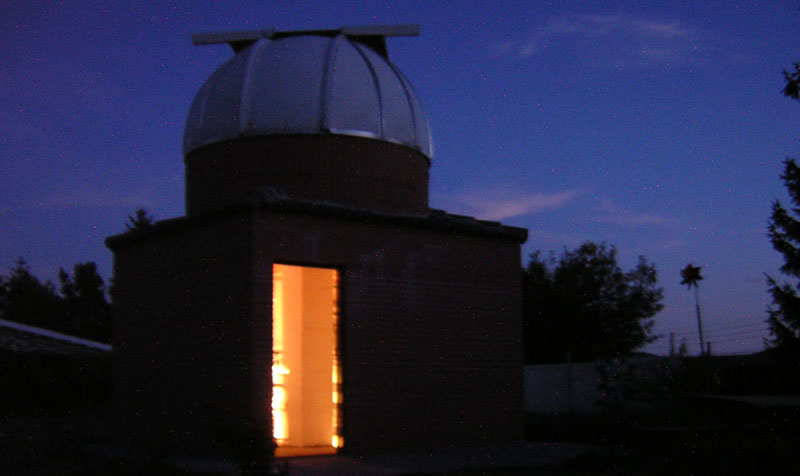

In this picture, the opened observatory cools to ambient temperature on a sunset, just before observations. At the same time, the CCD camera is cooling down to -30 C below ambient.
|
|
|

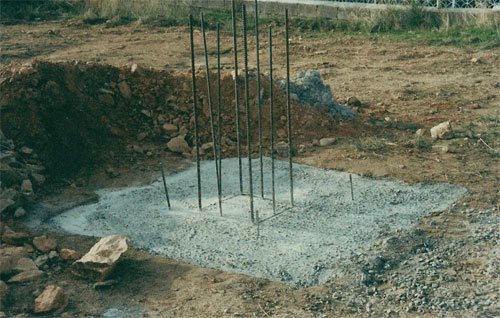

The pier foundation is a concrete cube 1.5m on the side.
|
|
|
|
|

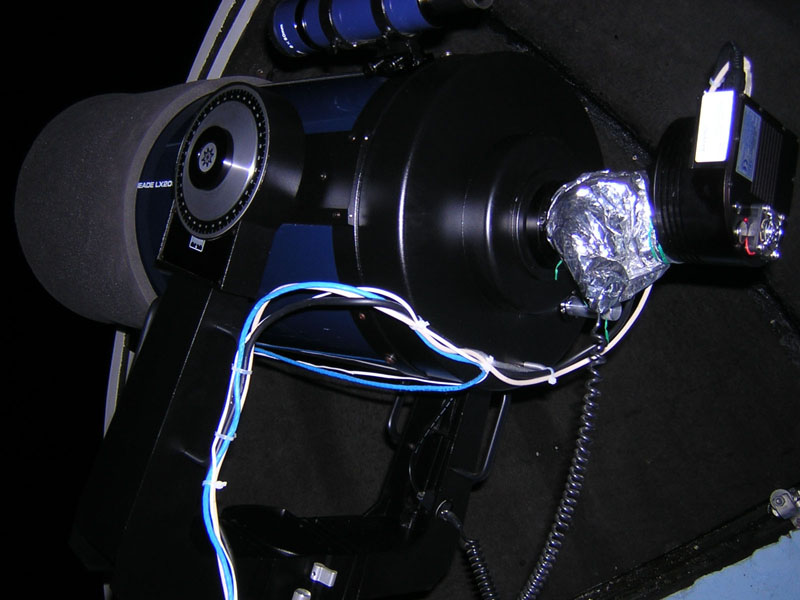

A view of the telescope, on the right the CCD, an SBIG ST9 cooled camera
|
|
|
|
|

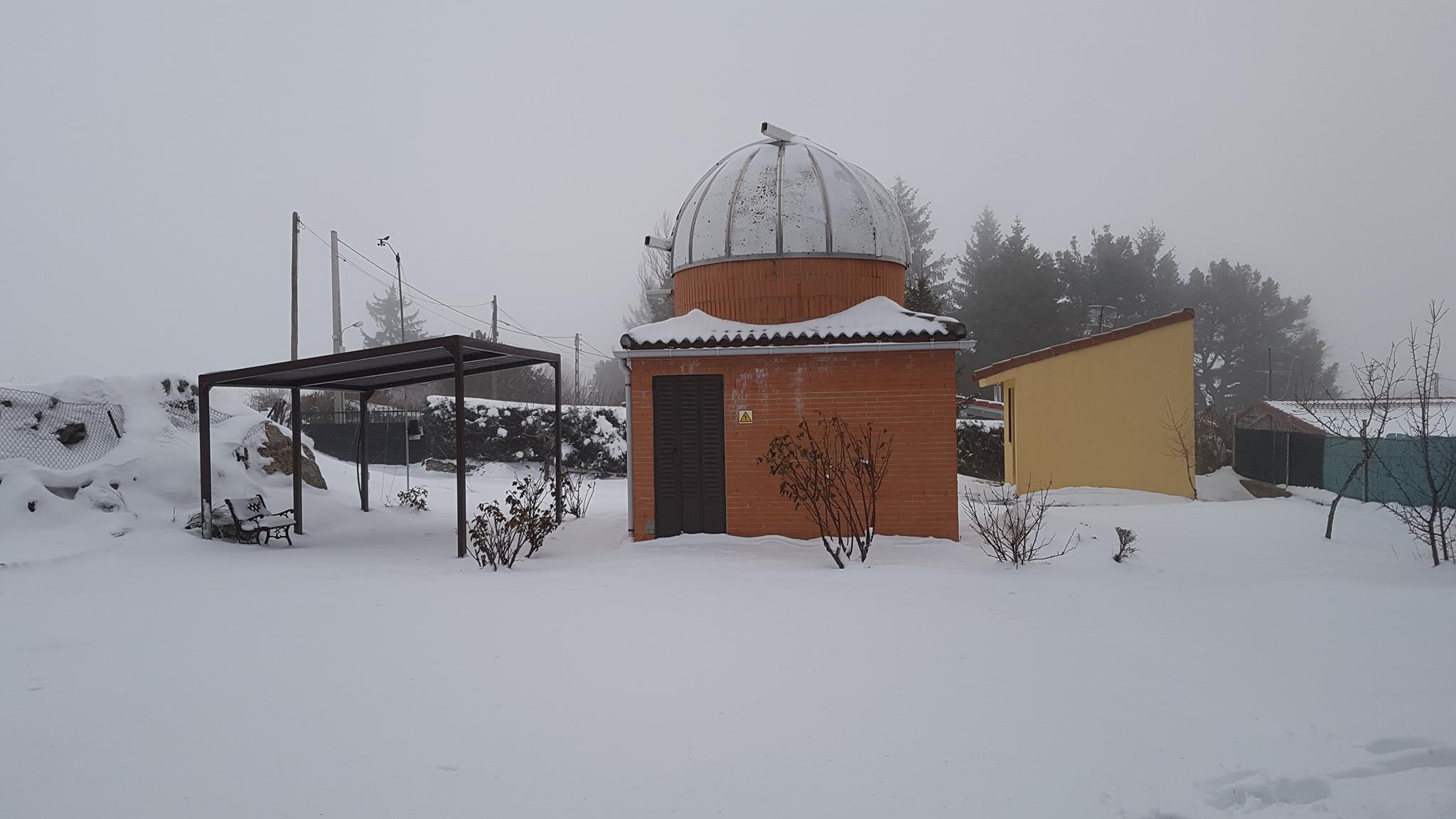

Two views of the observatory, on a clear winter Sun rise (left) and a more uptodate photo (December 2006) under the snow.
|
|
|
|
|

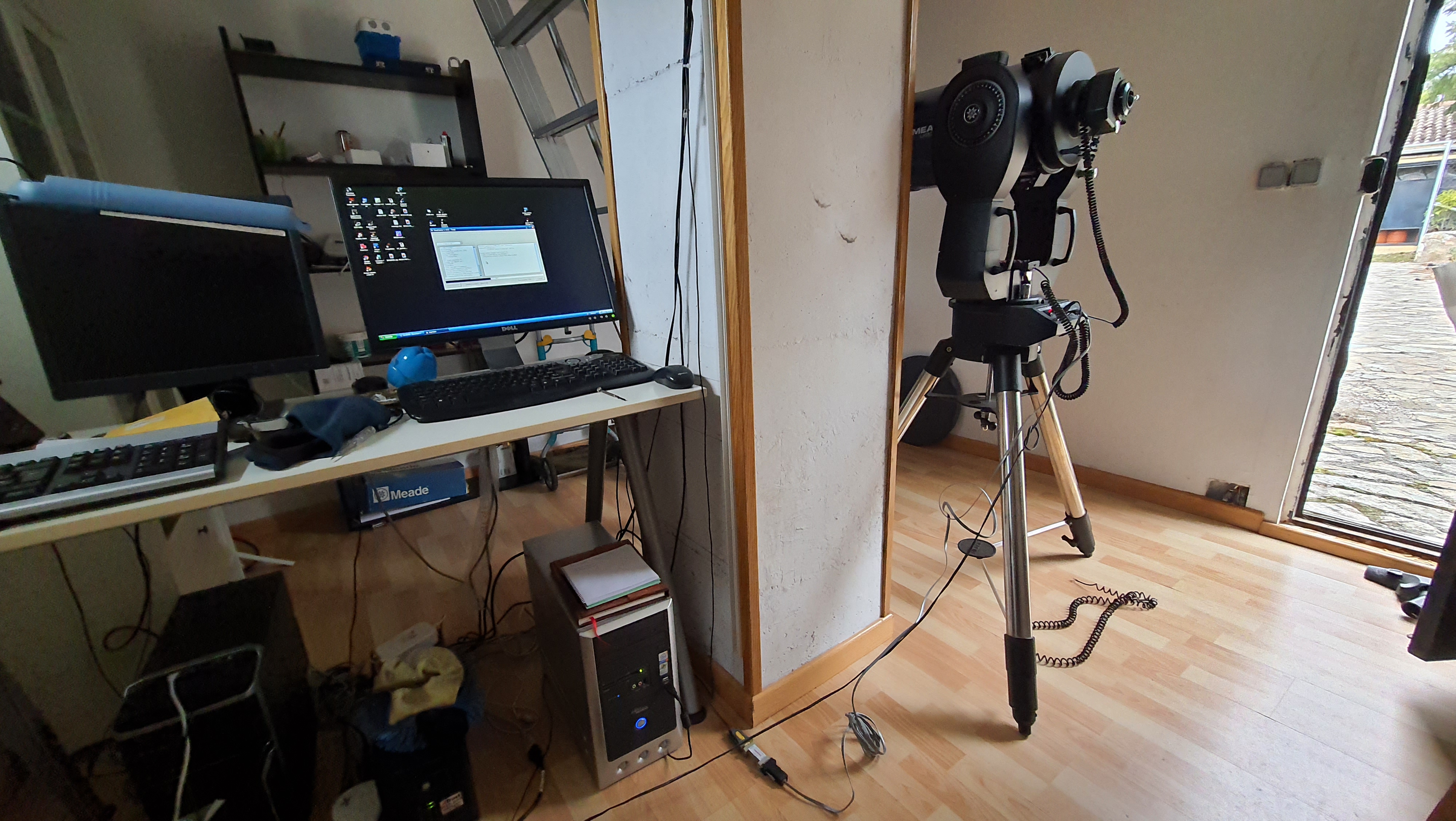

The control room
|
|
|
|
|

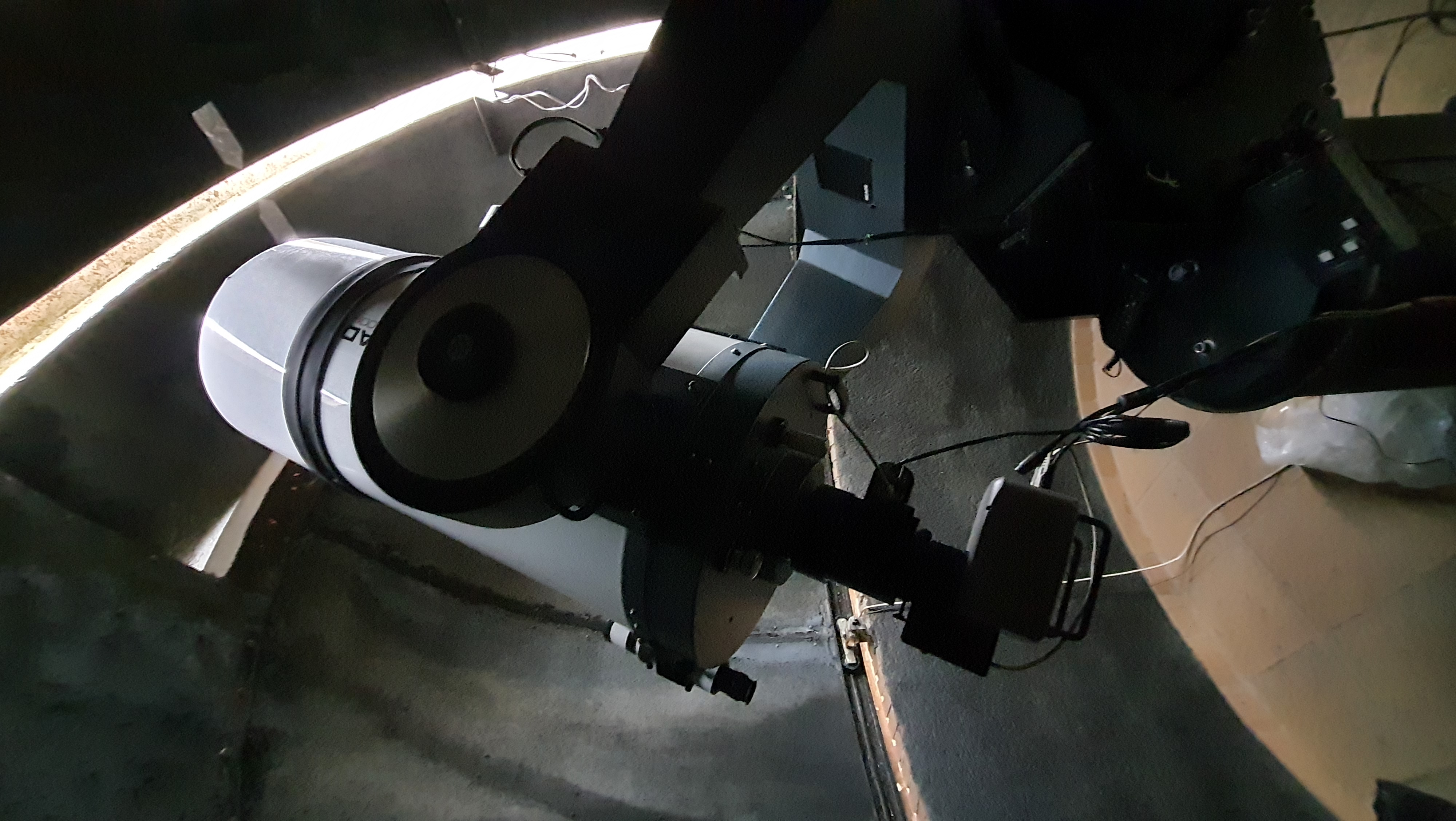

The Meade LX200 12" telescope and the observation window shutters, these are moved by two Firgelli linear actuators controlled from the observatory's PC
|
|
|
|
|
Wind vane and Anemometer
|
|
|
|
|
The Control PC
|
|
|
|
|
